GitHub Repositories¶

Step 1: Link Your GitHub Account¶

You will need to link an account on GitHub to Review Board, so that Review Board can access content from the repository. If you’ve already linked an account with sufficient access to the repository, you can use that instead.

If you’re linking for the first time, you’ll need to make sure you have your username and Personal Access Token handy.

Fill out the following fields:

GitHub Username:

The username used to log into your GitHub account. This is not your e-mail address.

Personal Access Token:

A GitHub Personal Access Token, created in your GitHub account under Settings -> Developer Settings -> Personal Access Tokens. When creating a new token, give it a descriptive name and enable the following scopes:

• admin:repo_hook
• repo
• user

See GitHub’s guide on Personal Access Tokens.

The account will be linked when the repository is saved. If there are errors authenticating the user or retrieving an access token, you will be prompted to fix them.

Step 2: Provide Repository Information¶

Next, you’ll need to fill out the following fields:

Repository plan:

This specifies the type of the repository, whether it’s public/private or personal/team. You’ll have one of the following choices:

• Public: The repository is owned by the linked user account, and is publicly-accessible to any user.
• Public Organization: The repository is owned by an organization, and is publicly accessible to any user.
• Private: The repository is owned by the linked user account, and is accessible only to the linked user and other GitHub users who were granted permission.
• Private Organization: The repository is owned by an organization, and is accessible only to the linked user and other GitHub users who were granted permission.

Note

The public/private options have no bearing on who can access review requests on this repository in Review Board. See Step 4: Manage Access Control.

Organization name:

If you’re using an organization-based plan, you will need to specify the organization name in the Organization name field. This is the same value you would find in the URL. For example, if your repository was https://github.com/myorg/myrepo/, your organization name would be myorg.

Repository name:

You’ll then need to specify the name of your repository in the Repository name field. This is the same value you would find in the URL. In the above example, your repository name would be myrepo.

Step 3: Choose a Bug Tracker¶

If you’re using the issue tracking feature on this repository, you can simply check the Use hosting service’s bug tracker checkbox. All bug IDs will link to the appropriate issues for your repository.

If you’re using a separate bug tracker, or a separate repository on GitHub, you can leave the checkbox unchecked and choose a bug tracker from the list.

Learn more about bug tracker configuration.

Step 4: Manage Access Control¶

You can now choose who should have access to this repository (both posting against it and viewing review requests posted against it). This is separate from GitHub’s own access controls.

Learn more about access control.

Step 5: Save the Repository¶

At this point, you should be able to save the repository. If saving succeeds, you’re done! You can start posting changes for review.

Add the WebHook¶

On Review Board, view the list of repositories and locate the repository you want to configure hooks for. Beside the repository name, you’ll see a Hooks link. Click that and you’ll see instructions for configuring the hook.

The instructions will contain a link taking you to the page on GitHub for adding a new WebHook, along with all the information you need in order to add the hook. Simply follow the instructions and you’ll be ready to go.

Tag Your Commit Messages¶

To close a review request for a given commit, you’ll need to add some special text to your commit message that references the review request. This can be in the form of Reviewed at review_request_url or Review request #id. This must be on its own line, but can appear anywhere in the commit message.

For example:

Reviewed at https://reviewboard.example.com/r/123/

Or:

Review request #123

If you use rbt land, this will be automatically added for you when landing your changes.

Step 1: Verify Your Access Settings¶

You’ll need to check whether your organization restricts new third-party applications.

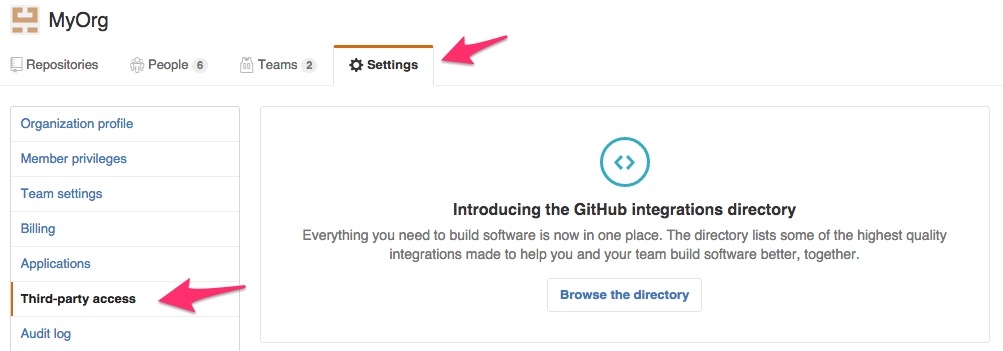

Have a GitHub organization administrator navigate to your organization page (https://gthub.com/orgname) using their admin account. Click Settings and then click Third-party access on the left.

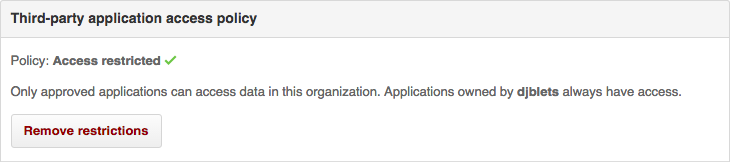

From here, you’ll be able to see the current access policy and any approved applications.

If Policy says Access restricted, then continue on with this guide.

However, if it says No restrictions, then you don’t need to worry about this guide, and should double-check the information you entered into the repository form instead (if it gave you an error about not being able to find your repository).

Keep this page handy. You’ll need to come back to it.

Step 2: Request or Grant Access¶

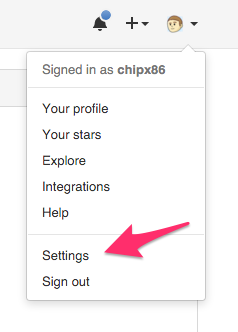

Make sure you’re logged in as the user whose account was linked to Review Board when configuring the repository. Go to your settings page (click your avatar in the top-right of any page on GitHub, and then click Settings). Then click Applications on the left.

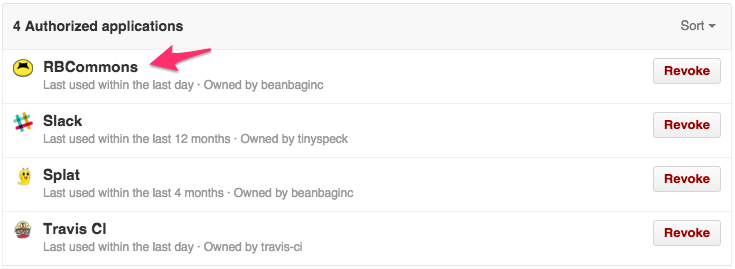

“RBCommons” (or the name of your custom application) should appear in this list under Authorized Applications. Click on it.

From here, you’ll see a list of organizations you belong to that have access to your application, and any that need access to be granted. Your organization should appear in this list along with a button for requesting or granting access.

If you’re an organization admin…¶

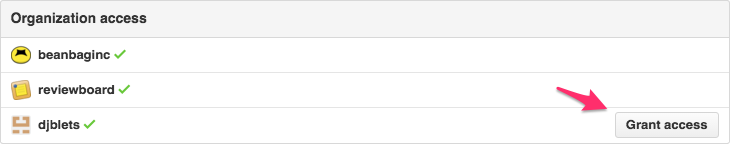

Click Grant access from here. You’re done! Go back and save your repository again, and you should be all set up.

If you’re not an organization admin…¶

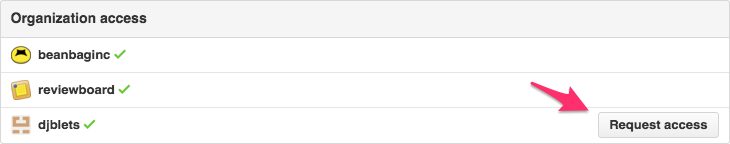

Click Request access and follow the instructions. You’ll then need to continue with step 3.

Step 3: Approve Requested Access¶

If you clicked Request access above, you’ll now need an organization admin to approve it (by clicking Grant Access above). The administrator from Step 1 should reload the page they were on in that step. RBCommons (or your custom application) should now be in the list. Simply approve the application from there, and you should be good to go.

Then, simply save the repository again. You’re done!
