Reviewing Code (Diffs)¶

File Listing¶

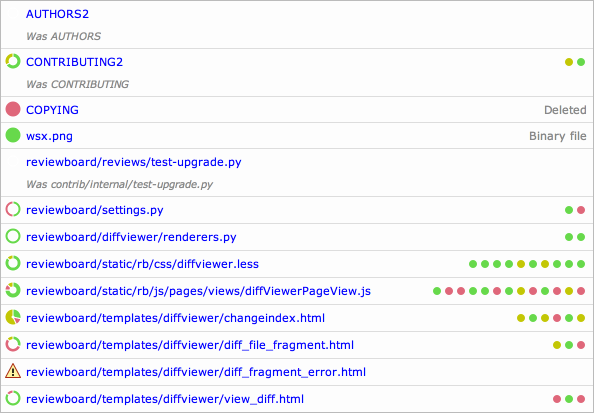

The file index lists all the files which are shown on the current page. There are several parts to this display:

• On the left is a graph which shows the ratio of added/changed/deleted lines. The thickness of this graph indicates what percentage of the file has been altered.

• The name of the file. This can be clicked to jump directly to the diff for that file.

• Whether the file was renamed, and the old filename if so.

• Indications for deleted or binary files.

• A list of clickable chunk dots, color-coded to represent add/change/delete.

Depending on the number of files modified, the diff viewer may be split across multiple pages. You can jump to the pages using the paginator above or below the diffs.

Viewing Other Diff Revisions¶

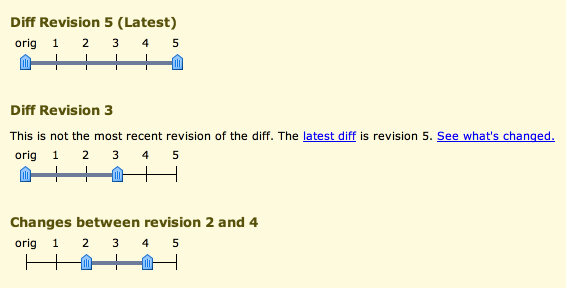

Every public revision of a diff that was posted is available for review. The diff revision selector allows you to look at previous versions of the change. To browse old revisions, set the handle on the left to orig (meaning the original version of the file) and the handle on the right to the revision you want to look at.

This is sometimes useful when you’re in the middle of a review of a particular diff, go away for a bit, and then come back to discover that a new diff revision has been uploaded. In this case, a warning box will appear telling you that you have additional comments on an older revision, with a helpful link to jump back to that revision.

The diff viewer also allows you to do comparisons between diff revisions (called interdiffs). In other words, it lets you see what changes the developer has made since the previous version of the diff you looked at, which is very useful for large changes which require several iterations of review.

To view an interdiff between two diff revisions, set the two handles to the revisions you want to compare.

Keyboard Shortcuts¶

There are many keyboard shortcuts for navigating around the diff viewer. We provide alternate keys for all navigation options in order to accommodate different keyboard layouts.

• Go to the previous file: a A K P < m

• Go to the next file: f F J N >

• Go to the previous change: s S k p ,

• Go to the next change: d D j n .

• Go to the previous comment: [ x

• Go to the next comment: ] c

• Add a new comment to selected block: r R

Moved Line Indicators¶

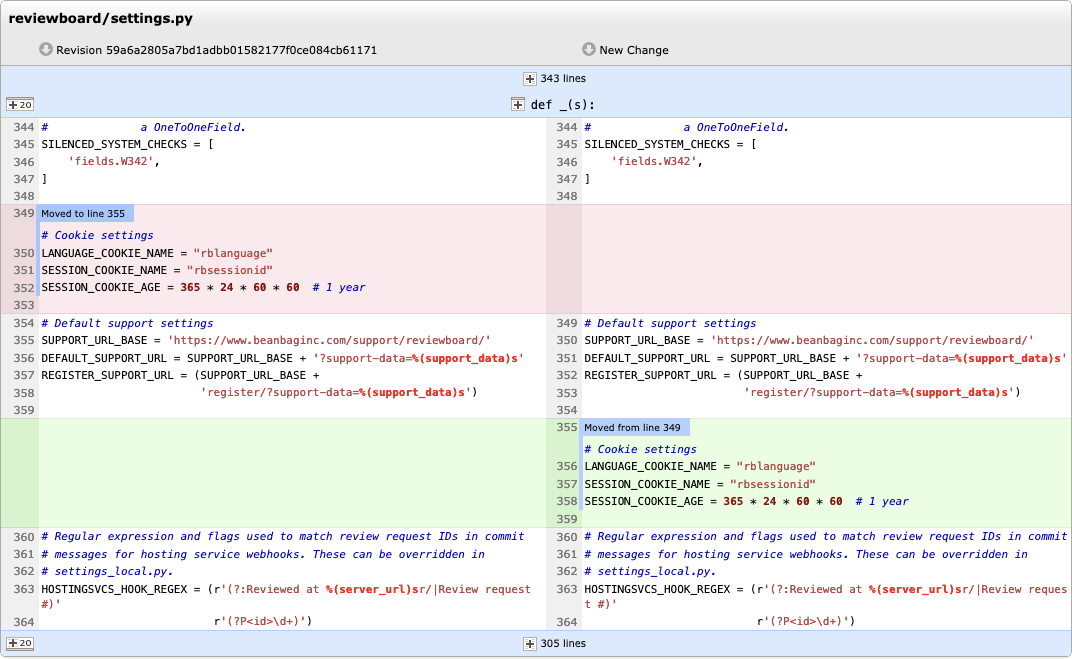

If you move one or more lines of code within a file, instead of just showing those lines as deleted from one location and added to another, Review Board will detect that the lines have been moved and show an indicator. These indicators can be clicked to jump to the other end of the move.

Indentation Change Indicators¶

Historically, Review Board would show lines that differed only in their indentation as being equal. This is nice in most cases, but can hide important information, especially in languages like Python where the indentation is crucial to the meaning of the code.

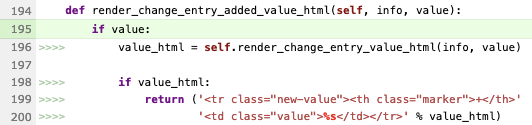

Review Board will now show indentation changes with small indicators at the beginning of the line. Dedents will be shown on the left-hand side of the diff, and indents will be shown on the right.

Highlighted Changes in Replaced Lines¶

Edits which change only one or two characters in a long line can be difficult to read, so when the original and new lines are very similar, Review Board will highlight which characters changed. This is shown with a slightly darker yellow background.

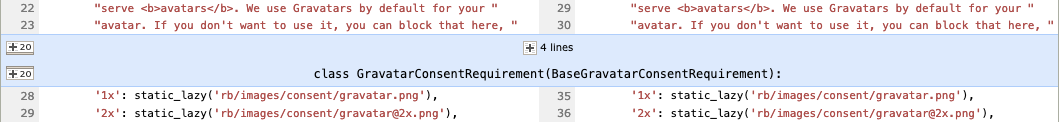

Expanding Lines of Context¶

The diff viewer shows a few unchanged lines around any modified lines in a file, helping you to see some context to the changes, but sometimes that’s not enough. Instead of opening the original file in an editor or a browser to see more, you can expand the number of lines of context with a simple click.

These headers appear above any group of modified lines, and at the bottom of the diff viewer (if not otherwise showing the last lines in the file).

Clicking above the line numbers on the left will expand 20 lines at a time.

Clicking at the top of the header will expand all the lines hidden by that header.

Clicking beside the function or class shown will expand all the lines up to the line shown beside the icon.

Expanded context can be re-collapsed by clicking the floating collapse icon shown.

Viewing Deleted File Content¶

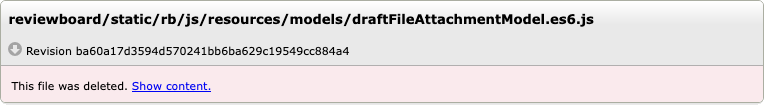

By default, the diff viewer doesn’t show the content of any files deleted in a diff, as this code often doesn’t need to be reviewed. Instead, you’ll see a simple message stating that the file was deleted.

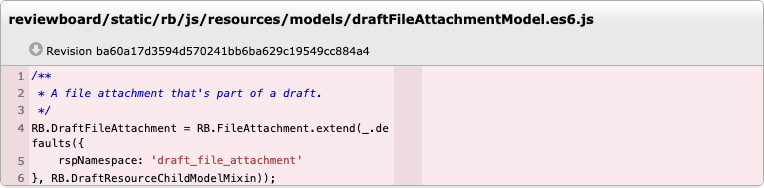

For those times that you do need to see more, you can click Show content to load in the content of the deleted file.

Deleted files can be commented on and will appear in reviews. It’s important to note though that deleted files that contain comments are not automatically expanded in the diff viewer.

Downloading File Content¶

The entirety of the file on either side of the diff can be downloaded by clicking the icon beside the revision in the diff header. This can be useful if you just want to pull down the entire file and view it in your editor.

Commenting on Lines¶

Creating a comment is easy. To comment on a single line, simply click the line number. A comment dialog will appear giving you a text entry for writing your comment. When you’re done, you can click Save to save the comment.

To leave a comment across multiple lines, click-and-drag down multiple line numbers. Each will highlight and be made a part of your comment.

After saving a comment, you can re-edit it by clicking the green comment bar, or by editing it in the review dialog.

Reading Published Comments¶

While reviewing code, you may have something to say about a line of code, but want to check first that someone else hasn’t already said it. Before leaving a comment, check if there’s a blue comment bar alongside the code. If there is, you can mouse over and read snippets of the discussion in a tooltip, or click the bar to read more.

Clicking the bar will display the comment dialog with a side pane showing any other comments for that line, along with links for viewing or replying to the full comment on the review request page.

If you have something new to say as part of your own review, you can write a new comment in the comment dialog.

Filename Patterns¶

Filename filtering allows for specifying patterns that match files and paths in the diff. This works like Unix shell-style wildcards.

The following patterns can be included:

If you need to match an actual ? or *, list it like [?] or [*].

Patterns are case-insensitive, so a pattern for *.txt will match ` file named README.TXT.

Here’s a few examples for constructing patterns:

• *.txt – Matches any files with a .txt extension in any path

• src/* – Matches anything inside the src/ directory, including within subdirectories

• */README – Matches a README file in any subdirectory in the tree
