CircleCI Integration¶

Integration Configuration¶

To configure an integration with CircleCI:

1. Navigate to the Administration UI -> Integrations.

2. Click Add Integration and select CircleCI.

3. Fill out the general fields:

   Name:

   A name for this particular configuration.

   Each integration must have its own name. You can provide any name you choose. This will be shown whenever a build is in progress.

   Enable this integration

   This will be on by default. You can turn this off to temporarily or permanently disable this CircleCI configuration without having to delete it.

   Local Site

   If you’re using the advanced Local Site (multi-server partition) support, you can specify which site contains this configuration.

   Most users can leave this blank.

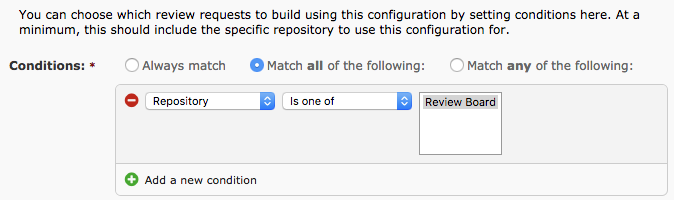

4. Set the Conditions for when Review Board will trigger a build.

   At a minimum, you should set a condition to match a specific repository. Even if you only have one repository configured now, you’ll want to set this up so things don’t break if you connect a second one. If needed, you can create complex rules for which review requests get matched with this config (for example, if you only want to run a test suite for certain branches).



   Because CircleCI only works with GitHub and Bitbucket repositories, only changes on repositories configured with those hosting services will trigger builds.

5. Fill out the information for the build processes in CircleCI.

   API Token:

   The API token used for authentication. You can use a personal or project API token. To create an API token, follow the instructions in their documentation.

   Build Branch:

   An optional branch name to use for review request builds within the CircleCI user interface.

   By default, the CircleCI user interface will show all builds as occurring on master. This field allows you to override the branch name to be something else, as to separate review request builds from regular builds.

   Note

   We recommend creating and pushing a dummy branch named “review-requests” to your repository, and then filling in that name here. The actual contents of that branch are unimportant, and it never needs to be updated, since the source will be completely replaced during the build process.

6. Set the information for when to run builds.

   Run builds manually:

   Enable this if you want CircleCI builds to only run when manually started.

   When enabled, this will add a Run button to the build entry.

   Build timeout

   The amount of time until the build is considered to have timed out.

   If the build takes longer than this, it will be marked as timed out and can be re-run.

You can create multiple configurations of the integration to do builds for each repository which supports CircleCI builds.

CircleCI config.yml Configuration¶

CircleCI has no built-in support for doing test builds of patches, so Review Board will trigger a build using a special job name and pass in information in the environment which will allow you to set up the build using .circleci/config.yml.

There are several environment variables which will be passed in to your build:

• REVIEWBOARD_SERVER - The Review Board server name.

• REVIEWBOARD_REVIEW_REQUEST - The ID of the review request.

• REVIEWBOARD_DIFF_REVISION - The revision of the diff to build.

• REVIEWBOARD_API_TOKEN - An API token to use when communicating with Review Board.

• REVIEWBOARD_STATUS_UPDATE_ID - An internal identifier used when reporting status back to the Review Board server.

In order for builds with Review Board to work, the .circleci/config.yml file must define a job named reviewboard, and a webhook notification. The job should look substantially similar to your normal build job, but with the addition of a step at the beginning to apply the patch from Review Board. This should also not include anything that you don’t want to run on uncommitted changes, such as deployments.

This is an example .circleci/config.yml file which sets up a Python 2.7 environment, installs dependencies, and runs a unit test script. As you can see, the steps for the reviewboard job are virtually identical to the build job, except there’s an extra one at the start which applies the patch using rbt patch.

jobs:
  build:
    docker:
      - image: circleci/python:2.7
    steps:
      - checkout
      - run:
        name: Install dependencies
        command: sudo pip install -e .
      - run:
        name: Run tests
        command: python ./tests/runtests.py
  reviewboard:
    docker:
      - image: circleci/python:2.7
    steps:
      - checkout
      - run:
        name: Apply patch
        command: |
          sudo pip install rbtools
          rbt patch --api-token "$REVIEWBOARD_API_TOKEN" --server "$REVIEWBOARD_SERVER" --diff-revision "$REVIEWBOARD_DIFF_REVISION" "$REVIEWBOARD_REVIEW_REQUEST"
      - run:
        name: Install dependencies
        command: sudo pip install -e .
      - run:
        name: Run tests
        command: python ./tests/runtests.py
notify:
  webhooks:
    - url: https://reviewboard.example.com/rbintegrations/circle-ci/webhook/
