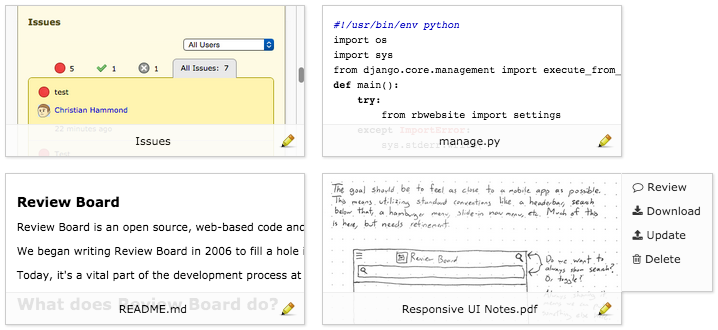

Uploading File Attachments¶

Any type of file can be added to a review request. Log files, binaries, test data, audio, or anything else. This is especially helpful for files that are part of a change but can’t be represented in diffs, as well as things like attaching a screenshot of changes that affect user interfaces.

Many types of files, including text and images, can be displayed on Review Board and reviewed by clicking on the areas where you want to add comments. This works just like the review process for source code. Simply click the thumbnail or click Review to begin reviewing the file.

Not all types of files have this support. For those files, clicking Add Comment will let you leave a comment that applies to the whole file.

See Reviewing File Attachments for more information.

There are two ways to upload a file attachment:

1. Click Update ‣ Add File on the action bar, browse for the file to upload, and optionally enter a caption for the file.

2. Drag the file from your file manager into the review request.

   When dragging over the browser window, a black overlay will appear, showing you where to drop the file to upload it.

   When you drop the file, the overlay will disappear and the file will upload.

   You can drag and upload multiple files at a time.

   Note that this requires a modern HTML5-capable browser, such as Google Chrome or Firefox 3.6+.

Updating File Attachments¶

File attachments have an associated history similar to source code if they are updated throughout the life of a review request. You’ll be able to view and compare old revisions of a file attachment even after it’s been updated with a new version.

To update a file attachment:

1. In the file attachment thumbnail for the respective file on the review request page, click Update.

2. Browse for the new version of the file to upload, and optionally change the caption for the file.

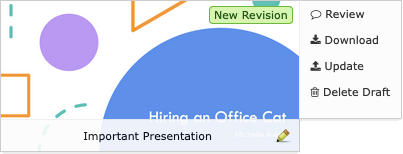

The new version of the file attachment will be visible to others once the review request draft is published. Until then, you may discard any draft changes to a file attachment by clicking Delete Draft.

See Reviewing File Attachments for more information on how file attachments with multiple revisions are reviewed.

Deleting File Attachments¶

File attachments can be deleted from a review request by clicking Delete. Once the review request draft is published, the file attachment will be removed from the main review request box. However it and any of its revisions will still be visible from the Review request changed overview.

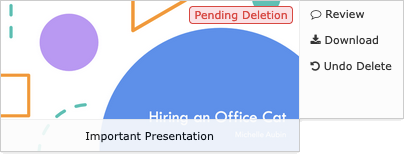

The deletion cannot be undone after publishing the review request draft. Before publishing the draft, you may undo the deletion by clicking Undo Delete.
